KA2211: 2×5.8W Simple Stereo Audio Amplifier

This is a very simple and low cost circuit of dual audio amplifier based on IC KA2211 from Samsung. With single chip, this circuit will deliver up to 5.8W on each output channel.

2x5.8W Simple Stereo Audio Amplifier circuit diagram

KA2211 is a dual audio power amplifier for consumer application. It is designed for high power, low dissipation dan low noise. Is also contains various of protectors and suitable for car audio power amplifier with high performance.

Read more about this KA2211 amplifier circuit

TDA7294-50W Power Amplifier

This is a high quality audio class AB amplifier in hi-fi applications. It has very low noise and distortion, wide bandwidth and good output current capability, enabling it to supply high power into both 4Ω and 8Ω loads. It has both short circuit and thermal protection, so is quite robust.

TDA7294-50W Power Amplifier circuit diagram

Component part list:

R1_____________ 150R
R2, R3, R5_____ 10K
R4_____________ 680R
R6_____________ 22K
IC1____________ TDA 7294
Heatsink
C1____________ 1u5F or 1u
C2____________ 2n7F
C3, C6________ 22uF 63V
C4, C5________ 10uF 63V
C7, C9________ 2200uF 50V
C8, C10_______ 100nF

22W Stereo Audio Amplifier based TDA1553CQ

This amplifier circuit will be nice for your car audio system. The circuit is simple, easy to build and not required large box or space.

2x22W Stereo Car Audio Amplifier circuit diagram

The TDA1553CQ is a monolithic integrated class-B output amplifier in a 13-lead plastic DIL-bent-SIL power package. It contains 2×22 W amplifiers in BTL configuration. The device is primarily developed for car radio applications.

25W Power Audio Amplifier Circuit

This is another simple schematic diagram of 25W power audio amplifier using single IC LM1875.

25W Hi-Fi Audio Amplifier based LM1875 circuit diagram

Component part list

R1 _____________ 1K
R2 _____________ 1M
R3 _____________ 22K
R4 _____________ 10K
R5 _____________ 180K
R6 _____________ 1R

IC1 ____________ LM1875
C1 _____________ 1uF 50V
C2,6 ___________ 100nF
C3 _____________ 22uF 63V
C4 _____________ 0.22uF
C7,5 ___________ 220uF 50V

Miscellaneous:
Fuse holder & cover
2 amp fuses

Simple Audio Mixer circuit

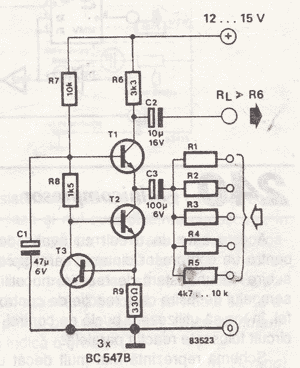

This is a simple audio mixer circuit diagram:

simple mixer circuit

You can add some resistors in parallel connection for more audio input. To adjust the volume for each input channel, add linear trimmer or potentiometer with configuration: pin1> ground; pin2>output; pin 3>input.
